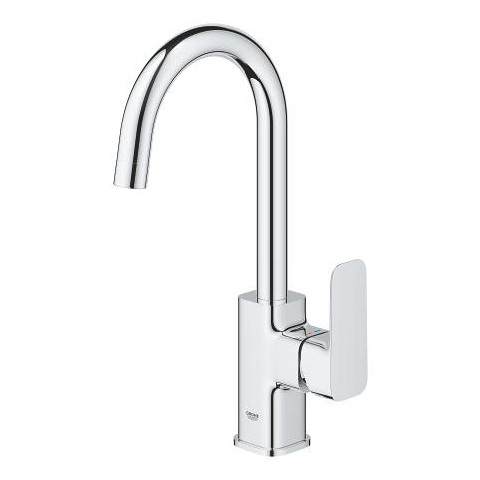

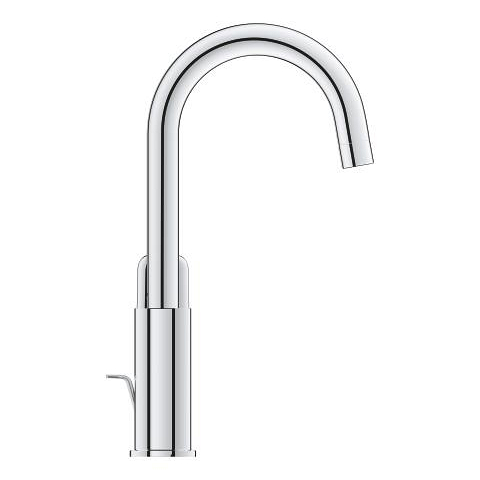

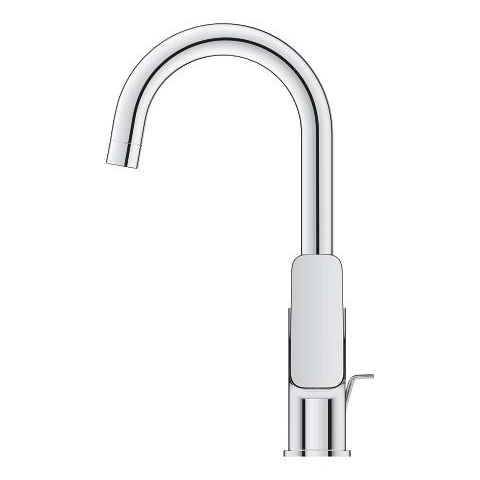

GROHE Cubeo Single-lever basin mixer 1/2″ L-Size

Product Number
1017670000
EAN
4067393011699
Colour
chrome
Download specs
  • single hole installation
  • metal lever
  • GROHE SilkMove 28 mm ceramic cartridge
  • EcoMode cold water flow in mid-lever position saves energy
  • with temperature limiter
  • GROHE LongLife finish
  • GROHE EcoJoy - Less water, perfect flow
  • maximum flow rate (at 3 bar): 5 l/min
  • GROHE FastFixation rapid installation system
  • pop-up waste set 1 1/4"
  • flexible connection hoses

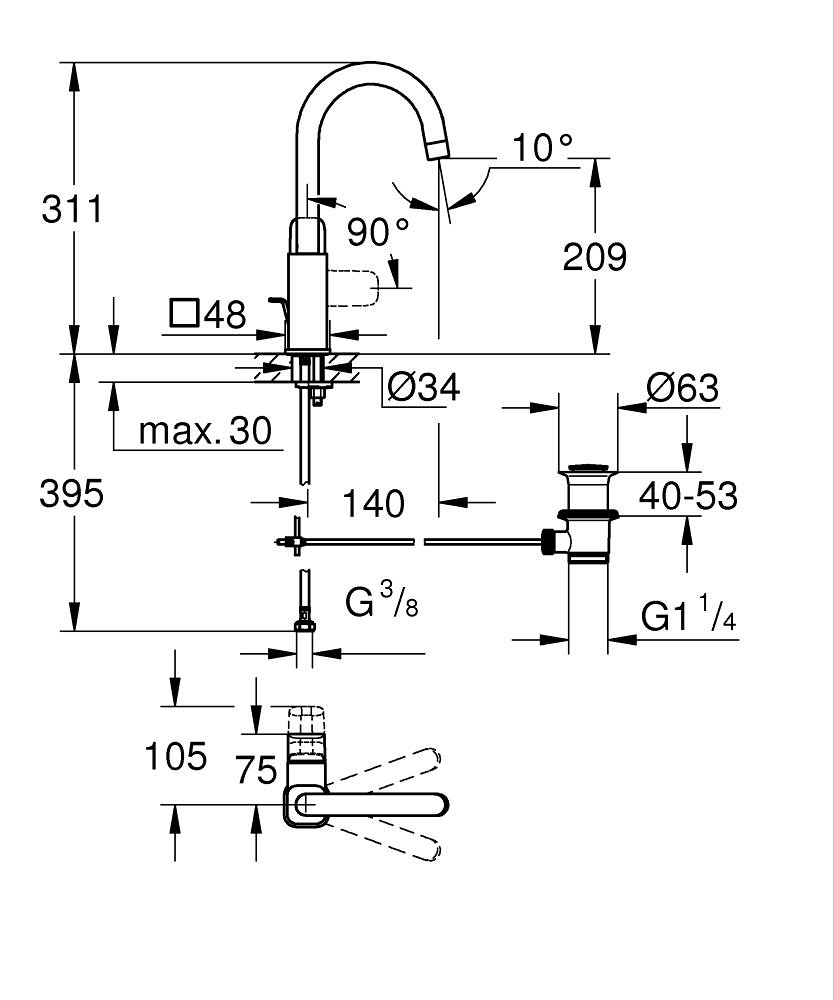

CAD Data
Pos.-nr. Prod. description Order-nr.
Optional accessories
1 lever 1096320000
2 Shield 46581000
3 Fitting ring 07419000
4 cartridge 1096369990
5 spout 1096330000
6 lift rod US 65936000
7 Shank mounting kit 46671000
8 Pop-up waste set 1 1/4" 28910000
8.1 Plug 07182000
8.2 Eccentric rod 07052000
9 Mounting wrench 19017000*
10 Eccentric rod 07341000*
