GROHE Cubeo Single-lever basin mixer S-Size
chrome
This small GROHE Cubeo basin tap in chrome saves water and space, but doesn't skimp on elegance!
The rounded edges and elegant, minimalist design of the GROHE Cubeo collection give it a special aura that is further enhanced by cutting-edge technologies and first-class workmanship. This tap has a height of 149mm and impresses with its compact shape. The extremely smooth-running and durable GROHE SilkMove ceramic cartridge ensures easy and precise control of the water volume and water temperature via the tactile lever made of solid metal. GROHE EcoJoy technology efficiently reduces water consumption: the maximum flow rate is just 5 l/min at 3 bar, without compromising on performance. The push-open waste set allows the drain to be opened and closed with a click. Thanks to the robust and easy-care GROHE LongLife coating in sparkling chrome, this product always remains flawless. Installation is quick and hasse-free – with the GROHE FastFixation system. GROHE Cubeo – designed to match, built to last!
- single hole installation
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- adjustable flow rate limiter
- with temperature limiter
- GROHE LongLife finish
- GROHE EcoJoy - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
- GROHE FastFixationInstallation system
- smooth body with push-open waste set 1 1/4"
- flexible connection hoses
CAD Data

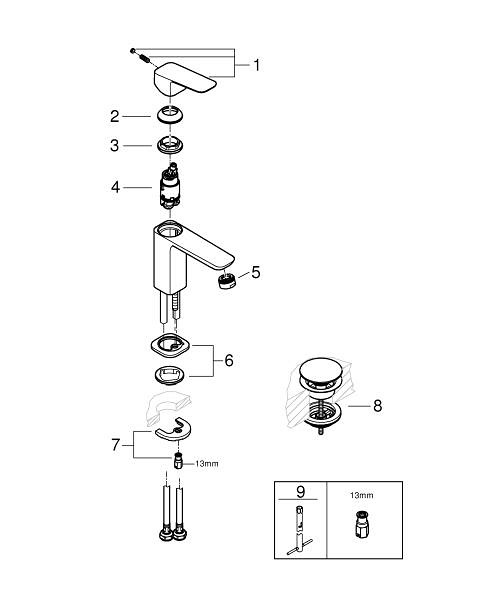

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | Cubeo Lever | 1060130000 |
| 2 | Shield | 46581000 |
| 3 | Fitting ring | 07419000 |
| 4 | Cartridge | 46580000 |
| 5 | Mousseur | 48159000 |
| 6 | Cubeo Rosette | 1060150000 |
| 7 | Shank mounting kit | 46249000 |
| 8 | Waste set with push-open plug | 65807000 |
| 9 | Mounting wrench | 19017000* |
