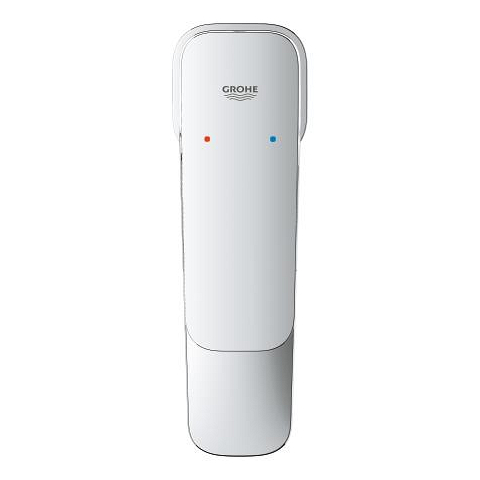

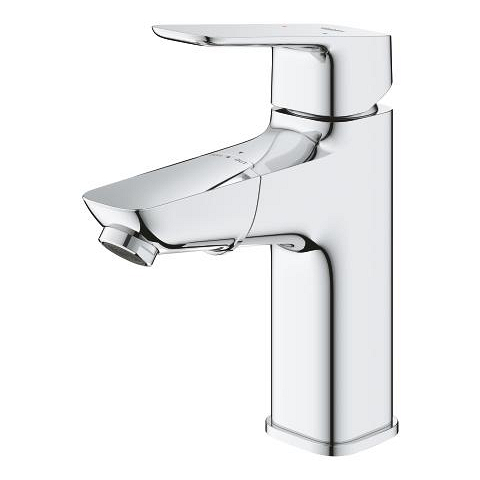

GROHE Cubeo Single-lever basin mixer 1/2″ M-Size
Product Number
1017500000
EAN
4067393013167
Colour
chrome
- pull out spout
- single hole installation
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- adjustable flow rate limiter
- with temperature limiter
- GROHE LongLife finish
- maximum flow rate (at 3 bar): 5 l/min
- rapid-installation-system
- MagneticDocking guarantees easy retraction and smooth docking of the spray head back to the starting position
- smooth body
- flexible connection hoses

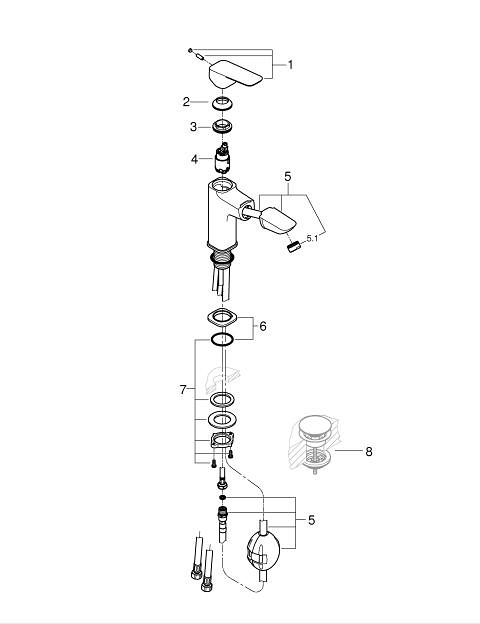

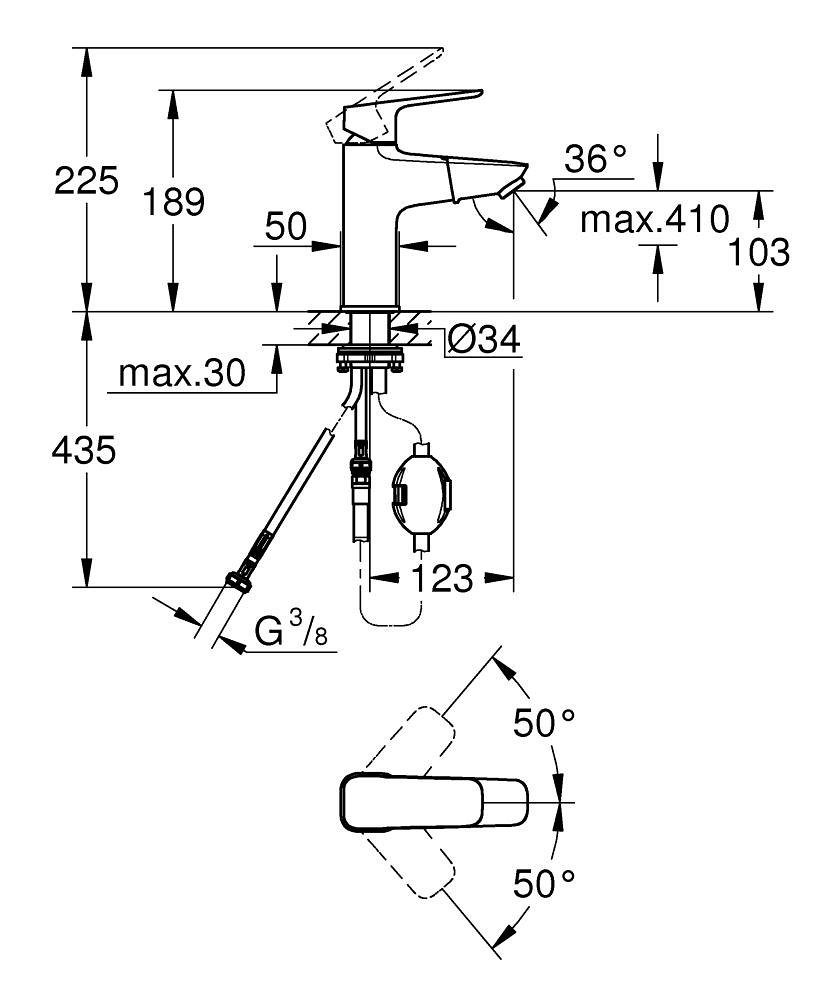

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | lever | 1106830000 |
| 2 | cap | 1106840000 |
| 3 | Fitting ring | 46715000 |
| 4 | Cartridge | 46963000 |
| 5 | pull out spray | 1106850000 |
| 5.1 | flow control | 1106860000 |
| 6 | escutcheon | 1106870000 |
| 7 | Shank fastening assembly | 48384000 |
| 8 | Waste set with push-open plug | 65807000* |
