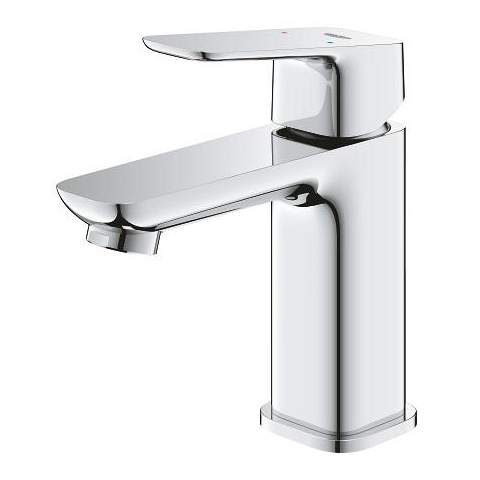

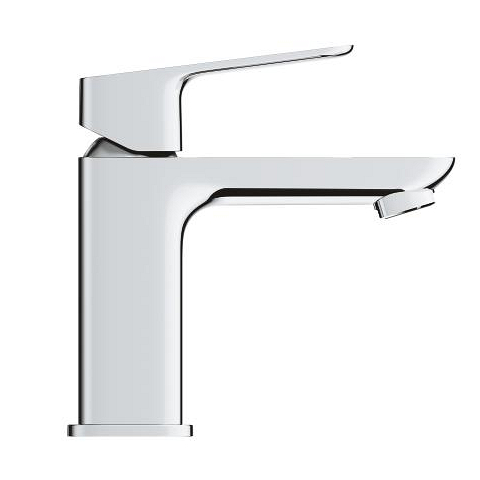

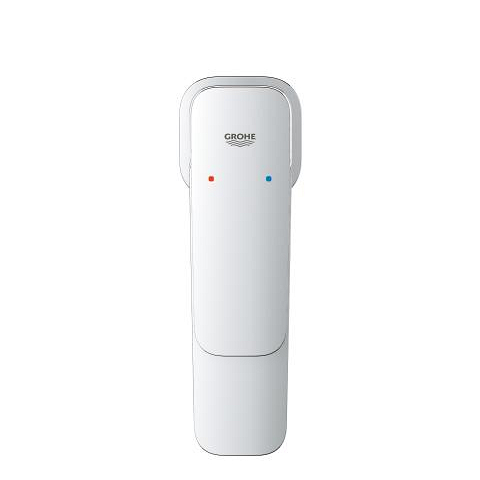

GROHE Cubeo Single-lever basin mixer S-Size
chrome
This beautifully designed GROHE Cubeo basin tap in S-size in chic chrome is specially developed for low-pressure systems!
Rounded corners and the sophisticated, minimalist design of the GROHE Cubeo collection create an extraordinary aesthetic that is further enhanced by advanced technology and the highest quality. The compact design of the mixer tap measures 149mm in height. Thanks to the smooth and long-lasting GROHE SilkMove ceramic cartridge, the water volume and temperature can be controlled with ease and precision using the high-quality metal lever. With the durable and easy-care GROHE LongLife chrome coating, this product remains in optimum condition at all times. Thanks to the GROHE FastFixation installation, fitting is a breeze. A water pressure of at least 0.3 bar is recommended for this low-pressure fitting. GROHE Cubeo – designed to match, built to last!
- single hole installation
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- adjustable flow rate limiter
- with temperature limiter
- GROHE LongLife finish
- min. recommended pressure 0.3 bar
- GROHE FastFixationInstallation system
- smooth body
- flexible connection hoses

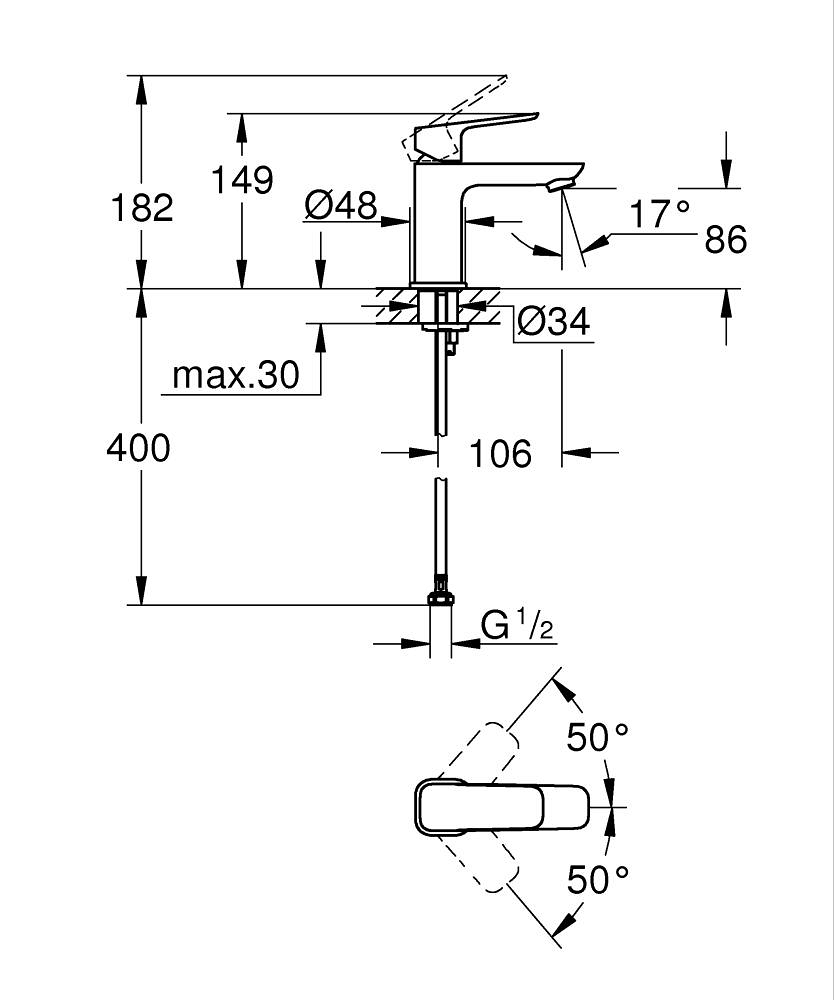

CAD Data

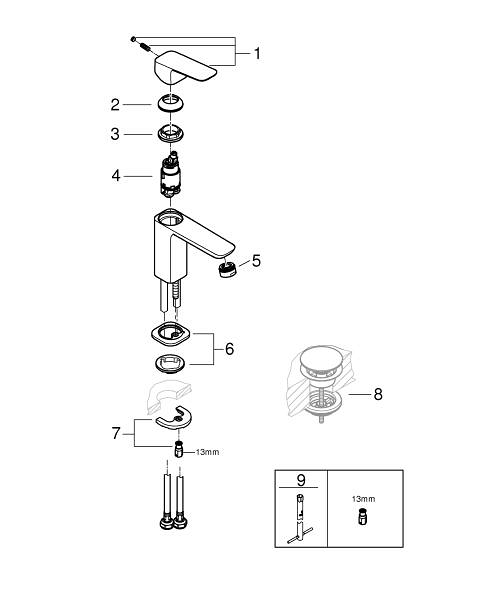

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | Cubeo Lever | 1060130000 |
| 2 | Shield | 46581000 |
| 3 | Fitting ring | 07419000 |
| 4 | Cartridge | 46580000 |
| 5 | Mousseur | 13922000 |
| 6 | Cubeo Rosette | 1060150000 |
| 7 | Shank mounting kit | 46249000 |
| 8 | Waste set with push-open plug | 65807000* |
| 9 | Mounting wrench | 19017000* |
