GROHE Cubeo Single-lever basin mixer S-Size
chrome
This chic, small GROHE Cubeo tap in chrome with extremely low water consumption makes sustainability a big deal!
Rounded corners and the elegant, minimalist design of the GROHE Cubeo collection create an extraordinary aesthetic that is further enhanced by innovative technology and the highest quality. This tap has a height of 149mm and impresses with its compact shape. The extremely smooth-running and hard-wearing GROHE SilkMove ceramic cartridge ensures easy and exact control of the water volume and water temperature via the tactile lever made of solid metal. With a maximum flow rate of just 3.5 l/min at 3 bar, this tap is characterised by exceptional efficiency and extremely low water consumption. The drain can be opened and closed at the back of the tap using a pull rod. With the durable and easy-care GROHE LongLife finish in gleaming chrome, the product always remains in spotless condition. Installation is speedy and hasse-free – with the GROHE FastFixation system. GROHE Cubeo – designed to match, built to last!
- single hole installation
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- adjustable flow rate limiter
- with temperature limiter
- GROHE LongLife finish
- Low Flow Rate for exceptional efficiency
- maximum flow rate (at 3 bar): 3.5 l/min
- GROHE FastFixationInstallation system
- pop-up waste set 1 1/4"
- flexible connection hoses

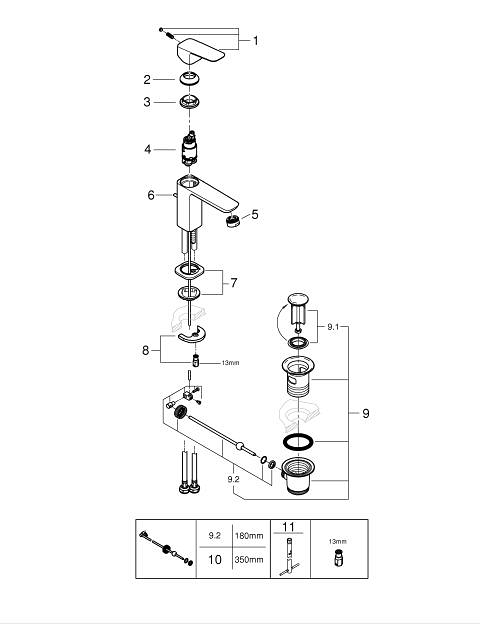

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | Cubeo Lever | 1060130000 |
| 2 | Shield | 46581000 |
| 3 | Fitting ring | 07419000 |
| 4 | cartridge | 1150629990 |
| 5 | Mousseur | 48159000 |
| 6 | Lift rod | 65936PD0 |
| 7 | Cubeo Rosette | 1060150000 |
| 8 | Shank mounting kit | 46249000 |
| 9 | Pop-up waste set 1 1/4" | 28910000 |
| 9.1 | Plug | 07182000 |
| 9.2 | Eccentric rod | 07052000 |
| 10 | Eccentric rod | 07341000* |
| 11 | Mounting wrench | 19017000* |
