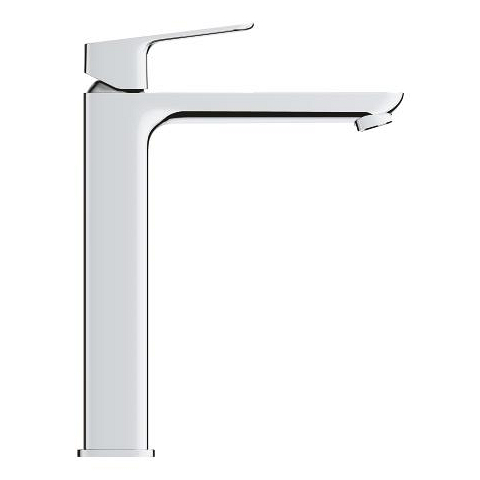

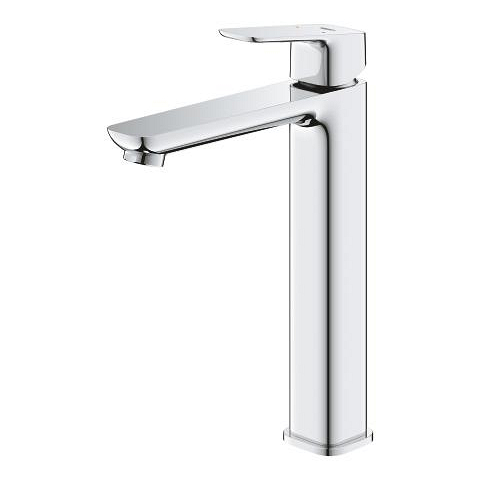

GROHE Cubeo Single-lever basin mixer 1/2″ XL-Size
Product Number
1017800000
EAN
4067393012269
Colour
chrome
- single hole installation
- for free standing basins
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- EcoMode cold water flow in mid-lever position saves energy
- adjustable flow rate limiter
- with temperature limiter
- GROHE LongLife finish
- GROHE EcoJoy - Less water, perfect flow
- maximum flow rate (at 3 bar): 5 l/min
- GROHE AquaGuide adjustable mousseur
- GROHE FastFixationInstallation system
- smooth body
- flexible connection hoses

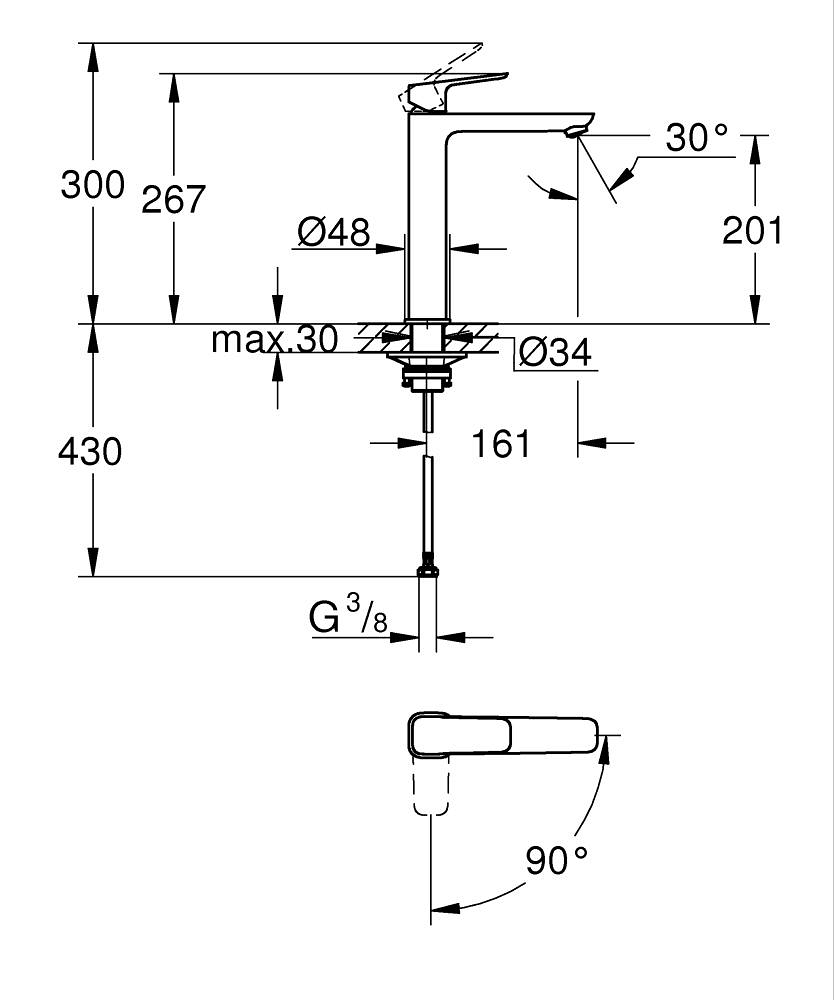

CAD Data

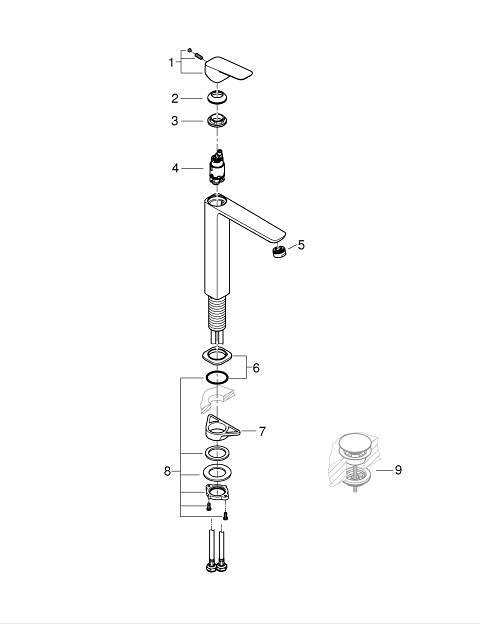

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | Cubeo Lever | 1060180000 |
| 2 | Shield | 46581000 |
| 3 | Fitting ring | 07419000 |
| 4 | Cubeo Catridge | 1060179990 |
| 5 | Flow straightener | 46837000 |
| 6 | escutcheon | 1060160000 |
| 7 | Support plate | 05334000 |
| 8 | Shank fastening assembly | 48384000 |
| 9 | Waste set with push-open plug | 65807000* |
