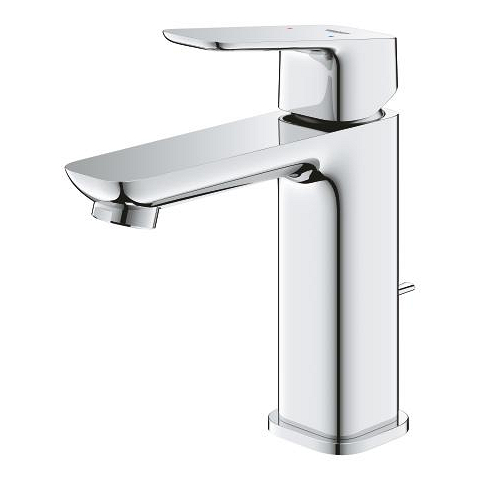

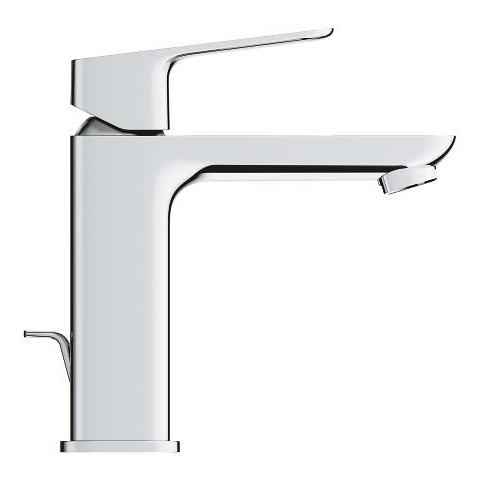

GROHE Cubeo Single-lever basin mixer 1/2″ M-Size
Product Number
1017510000
EAN
4067393013204
Colour
chrome
- single hole installation
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- adjustable flow rate limiter
- with temperature limiter
- GROHE LongLife finish
- GROHE EcoJoy - Less water, perfect flow
- maximum flow rate (at 3 bar): 3.5 l/min
- GROHE FastFixationInstallation system
- pop-up waste set 1 1/4"
- flexible connection hoses

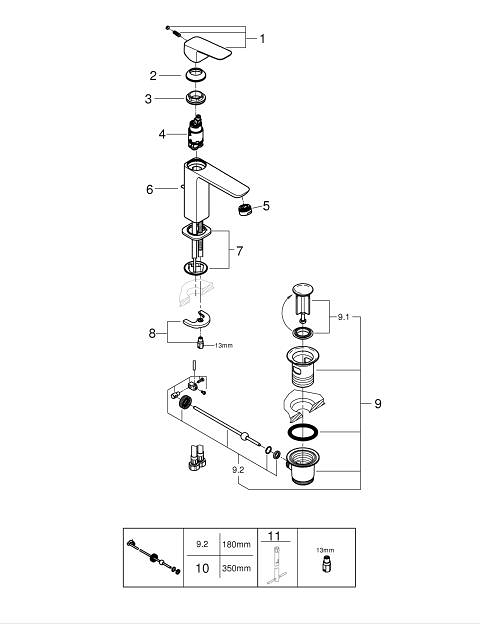

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | Cubeo Lever | 1060130000 |
| 2 | Shield | 46581000 |
| 3 | Fitting ring | 07419000 |
| 4 | Cartridge | 46580000 |
| 5 | Mousseur | 48159000 |
| 6 | Lift rod | 65936PD0 |
| 7 | Cubeo Rosette | 1060150000 |
| 8 | Shank mounting kit | 46249000 |
| 9 | Pop-up waste set 1 1/4" | 28910000 |
| 9.1 | Plug | 07182000 |
| 9.2 | Eccentric rod | 07052000 |
| 10 | Eccentric rod | 07341000* |
| 11 | Mounting wrench | 19017000* |
