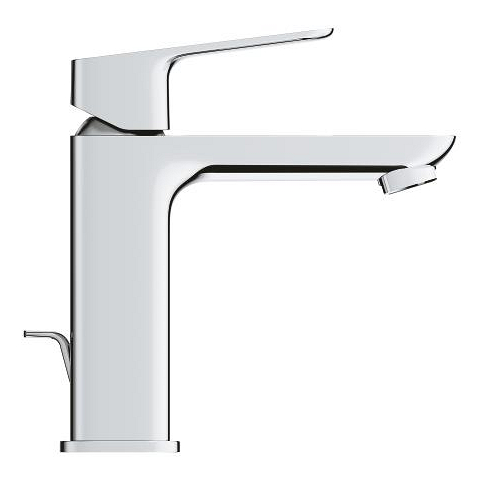

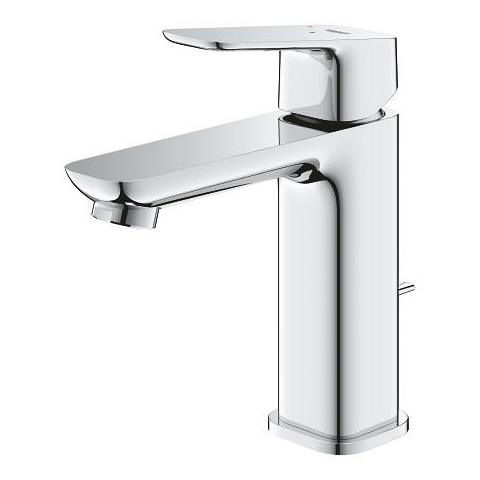

GROHE Cubeo Single-lever basin mixer 1/2″ M-Size
chrome
The GROHE Cubeo basin tap in M-size in chrome with EcoMode lever and super economical flow rate – anything but average!
Rounded corners and the elegant, minimalist design of the GROHE Cubeo collection create an extraordinary aesthetic that is further enhanced by advanced technology and the highest quality. The compact design of the tap measures 169mm in height. Thanks to the smooth and hard-wearing GROHE SilkMove ceramic cartridge, the water volume and temperature can be controlled with ease and precision using the high-quality metal lever. If the lever remains in the centre position, only cold water flows, which reduces energy consumption. This tap offers remarkable efficiency and water savings - at a water pressure of 3 bar, the maximum flow rate is just 3.5 l/min. The drain can be opened and closed at the back of the tap using a pull rod. With the durable and easy-care GROHE LongLife chrome coating, this product remains in optimum condition at all times. Thanks to the GROHE FastFixation installation, fitting is a breeze. GROHE Cubeo – designed to match, built to last!
- single hole installation
- metal lever
- GROHE SilkMove 28 mm ceramic cartridge
- EcoMode cold water flow in mid-lever position saves energy
- adjustable flow rate limiter
- with temperature limiter
- GROHE LongLife finish
- Low Flow Rate for exceptional efficiency
- maximum flow rate (at 3 bar): 3.5 l/min
- GROHE FastFixationInstallation system
- pop-up waste set 1 1/4"
- flexible connection hoses
CAD Data

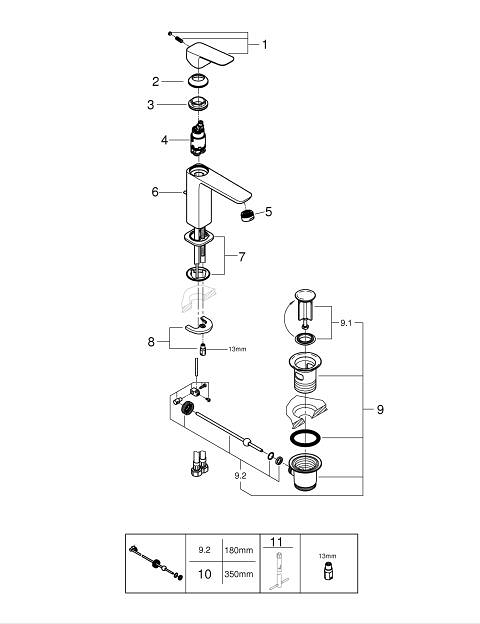

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| Optional accessories | ||
| 1 | Cubeo Lever | 1060180000 |
| 2 | Shield | 46581000 |
| 3 | Fitting ring | 07419000 |
| 4 | Cubeo Catridge | 1060179990 |
| 5 | Mousseur | 48159000 |
| 6 | Lift rod | 65936PD0 |
| 7 | Cubeo Rosette | 1060150000 |
| 8 | Shank mounting kit | 46645000 |
| 9 | Pop-up waste set 1 1/4" | 28910000 |
| 9.1 | Plug | 07182000 |
| 9.2 | Eccentric rod | 07052000 |
| 10 | Eccentric rod | 07341000* |
| 11 | Mounting wrench | 19017000* |
